Products > Levers > LCS.01
Description

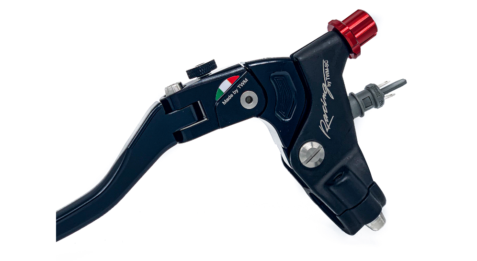

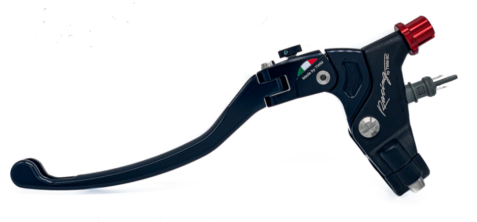

TWM Complete Clutch Lever is partially made from aluminium billet and CNC machined. While the perch is made in aluminium casted, the rest of the component is made from billet.

Thanks to the design and adjusting possibilities, it gives riders the most comfortable and precise configuration. Having positioned the regulator in the same axis of the lever, the lever can be adjusted to the ideal length from the handle bars.

Manufactured and designed with extreme accuracy, their weight has been brought to the lightest, yet, being able to fold on itself, the lever still has the maximum resistance studied to minimize potential crash damage.

In addition, thanks to the accurate design, having considered the the “low drag” method, with it’s cavity at the tip, it avoids air inserting pressure on the braking system at high speeds.


Options

TWM Complete clutch lever is available in two different lengths.

The standardized option is 195mm long form the pivot point, while the short version is  173mm long.


Application List

TWM levers are available for the majority of street and racing motorcycles.


BIKE  YEAR
BRAKE   Foldable-Adjustable
CLUTCH  Foldable
CLUTCH Foldable-Adjustable
CLUTCH Complete
IMAGES
CODE
APRILIA
RSV 1000 / R / FACTORY
04-08
LAD.R.02
LAS.R.02

TUONO / V4 1100 / RR / FACTORY
17-18
LAD.R.02
LAS.03
LAS.R.03
LCS.01
RSV4 R / RR / RF / FACTORY / 1100
09-18
LAD.R.02
LAS.03
LAS.R.03
LCS.01
BMW
S1000RR / HP4
15-16
LBMWD.R.01
LMBWS.01
LCS.01
S1000R Naked
08-12
LBMWD.R.01
LMBWS.01
LCS.01
DUCATI
DIAVEL / X DIAVEL / S

LDD.R.02
LDS.R.02

HYPERMOTARD 1100 / EVO / EVO SP

LDD.R.02
LDS.R.02

HYPERMOTARD 821
93-07
LDD.03
LDS.03
LCS.01
HYPERMOTARD 939

LDD.03
LDS.04
LCS.01
HYPERMOTARD 939 SP

LDD.R.02
LDS.03
LCS.01
HYPERMOTARD 939 SP

LDD.R.02
LDS.04
LCS.01
MONSTER 821 / 797

LDD.03
LDS.03
LCS.01
MONSTER 821 / 821 STRIPE / 797 / 797 +

LDD.03
LDS.04
LCS.01
MONSTER S4RS / S4R

LDD.R.02
LDS.R.02

MONSTER 1100 / S / EVO

LDD.R.02
LDS.R.02

MONSTER 1200 / S / R

LDD.R.02
LDS.R.02

MULTISTRADA 1200 / S

LDD.R.02
LDS.R.02

749 / 999 / S / R

LDD.R.02
LDS.R.02

848 / Dark

LDD.R.02
LDS.R.02

1098 / 1198 / S / R / Tricolore / Corse
17-18
LDD.R.02
LDS.R.02

PANIGALE 899 / 959 / 1199 / 1299 / S

LDD.R.02
LDS.R.02

PANIGALE V4 / S / SPECIALE

LDD.R.02

LDS.R.02

STREETFIGHTER- All Models

LDD.R.02

LDS.R.02

SUPERSPORT / S

LDD.R.02

LDS.04

SCRAMBLER- All Models

LDD.03

LDS.03

SCARMBLER- All Models

LDD.03

LDS.04

SCRAMBLER CAFÉ RACER - Radial Pump

LDD.R.02

LDS.03

HONDA
CBR 600 RR
07-16
LHD.R.01
LHS.01
LHS.R.01
LCS.01
CBR 1000 RR / SP / SP2
07-18
LHD.R.01
LHS.01
LHS.R.01
LCS.01
KAWASAKI
ZX6RR / ZX636R
05-06
LKD.R.01
LKS.01
LCS.01
ZX-6R
07-17
LKD.R.02
LKS.01
LCS.01
Z750R
2012
LKD.R.02
LKS.01
LCS.01
ZX-10 R
06-15
LKD.R.02
LKS.01
LCS.01
ZX-10 R / RR
16-18
LKD.R.03
LKS.01
LCS.01
Z1000
07-16
LKD.R.02
LKS.01
LCS.01
NINJA H2 / R
16-18
LKD.R.03
LKS.01
LKS.R.03

KTM
1190 RC8 / R

LKTMD.R.01
LKTMS.R.01

990 SUPER DUKE / R
05-16
LKTMD.R.01
LKTMS.R.01

1290 SUPER DUKE / R
14-18
LKTMD.R.01
LKTMS.R.01

MV
F3 675 / 800 / RC
12-18
LMD.R.02
LMS.04
LCS.01
F4 / RC / RR (Brembo Pump)
15-18
LMD.R.03
LMS.R.03

SUZUKI
GSX R 600
04-05
LSD.R.02
LSS.01
LCS.01
GSX R 750
04-05
LSD.R.02
LSS.01
LCS.01
GSX R 600
06-17
LSD.R.02
LSS.02
LSS.R.02
LCS.01
GSX R 750
06-17
LSD.R.02
LSS.02
LSS.R.02
LCS.01
GSX-S 1000
16-17
LSD.R.02
LSS.02
LSS.R.02
LCS.01
GSX R 1000
05-06
LSD.R.02
LSS.02
LSS.R.02
LCS.01
GSX R 1000
09-18
LSD.R.02
LSS.02
LSS.R.02
LCS.01
TRIUMPH
DAYTONA 675 (Radial Nissan Pump)
06-16
LTD.R.02


LCS.01
DAYTONA 675 / R / ABS (Radial Brembo Pump)

LTD.R.03


LCS.01
SPEED TRIPLE (Radial Nissan Pump)
08-16
LTD.R.02


LCS.01
SPEED TRIPLE 1050 / R / ABS (Radial Brembo Pump)
08-16
LTD.R.03


LCS.01
STREET TRIPLE 675 / R (Radial Brembo Pump)
09-16
LTD.R.03

LCS.01
STREET TRIPLE 675 / R (Radial Nissan Pump)
09-16
LTD.R.02

LCS.01
STREET TRIPLE 765 R / RS (Radial Brembo Pump)
17-18
LTD.R.03

LCS.01
YAMAHA
YZF-R6
05-16
LYD.R.02
LYS.01
LYS.R.01
LCS.01
YZF-R6
17-18
LYD.R.03
LYS.01
LYS.R.01
LCS.01
YZF-R1
04-14
LYD.R.02
LYS.01
LYS.R.01
LCS.01
YZF-R1 / S / M
15-18
LYD.R.03
LYS.01
LYS.R.01
LCS.01
YZF-R3
15-18
LYD.04
LYS.04
LCS.01
COMPLETE ADJUSTABLE LEVER
CLUTCH LEVER FOR CABLES TYPES




LCS.01

All Levers are available in standard or short length.
BREMBO
RADIALE RACE 16x16
LBD.16
LBS.16

RADIALE RACE 16x18
LBD.18
LBS.18

RADIALE RACE 19x16

LBD.16


RADIALE RACE 19x18

LBD.18
LBS.18



RADIALE RACE 19x20

LBD.20
LBS.20



**All parts are for exlusive racing use on tracks only and their use on public roads is forbibbed**
